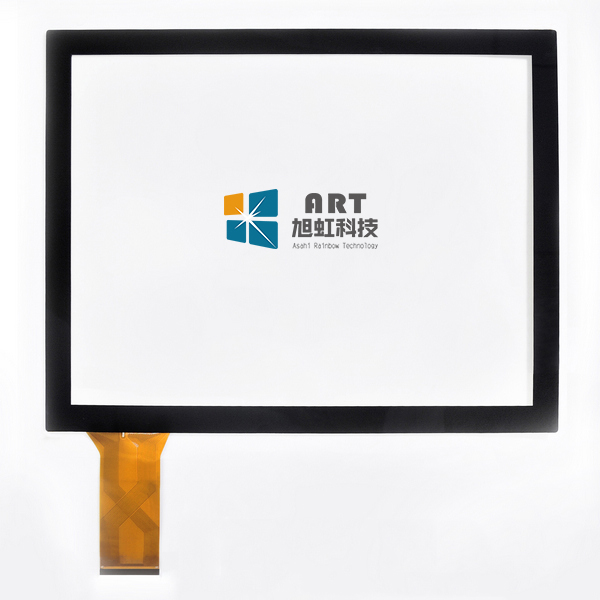

15寸G+G电容式触摸屏90315-005035A参数：
| 产品型号(Model No.) | 90315-005035A |
| 触摸点数(Touch point) | 10点触摸 |
| 厚度(Thickness) | 2.4 mm |
| 外形尺寸(Outline Dimensional) | 340mm*264mm |
| 可视区域(View Area) | 337.5mm*229.1mm |
| 结构类型(Panel structure) | G+G |
| 操作温度(Temperature range) | -30℃～+70℃ |
| 储存温度(Humidity range) | -40℃～+80℃ |
| 工作电压(Working voltage) | DC5.0V |
| 线性精度(Linear equation) | ≤2% |
| 透光率(Optical Characteristics) | ≥90% |
| 表面硬度(Surface Hardness) | ≥ 6H |
