＊G065VN01 V2 EC notice目的：由于驱动器IC正在向EOL转移，ADP将推出一款具有新IC解决方案的新电池，以实现长寿命支持。
＊时间表：
验证样本将于2022年8月8日前出来。
RA报告将于2022/10/M前提供。
客户批准日期：2023/1/B。
分阶段实施：2023/5/B
Items | Before (97.06G01.211) | After (97D06G01.221) |
Gate IC | NT39207 (Novatek) | ST5043DA (Sitronix) |
Source IC | NT39606H-D/3 (Novatek) | ST5891DA (Sitronix) |
LED driver IC | RT8560GQW (Richtek) | RT4527AGQW (Richtek) |

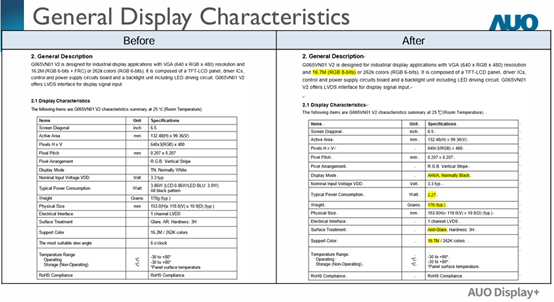

General Display Characteristics
Functional Block Diagram

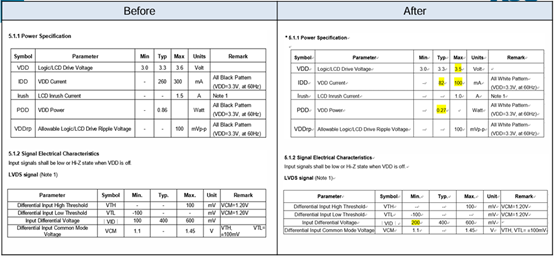

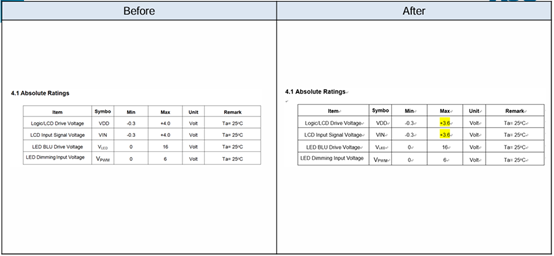

Electrical Characteristics
Due to the the new IC characteristics, VDD current, VDD power and Input Differential Voltage need to be changed.

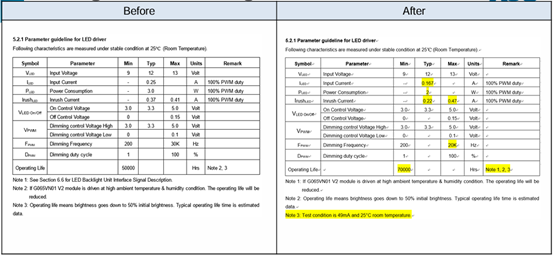

Backlight Unit Driving
Power ON/OFF Sequence

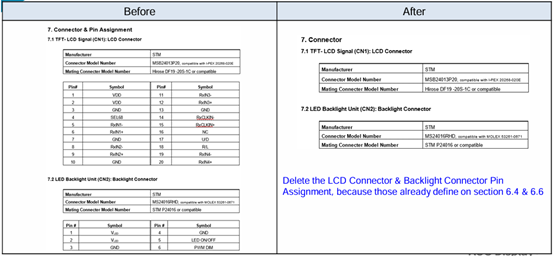

Connector

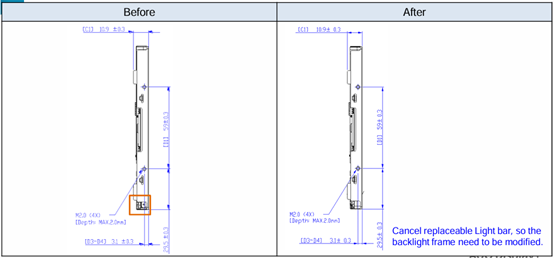

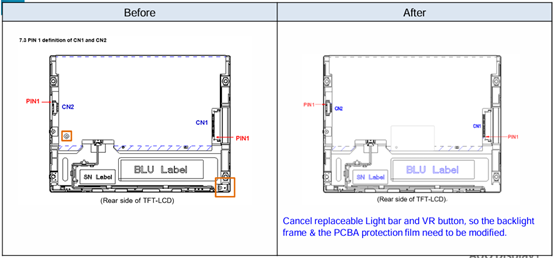

Mechanical Characteristics

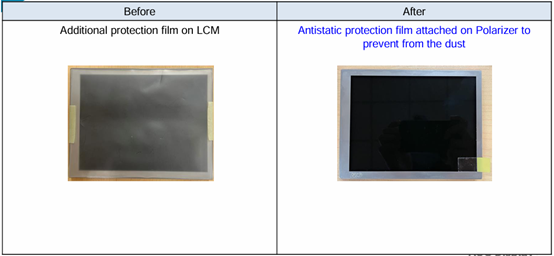

Label and Packaging
